Siemens 1FT7086-5SF70-1CH0-Z
SKU:
1FT7086-5SF70-1CH0-Z
$6,970.00
$3,495.00
$3,495.00
per item

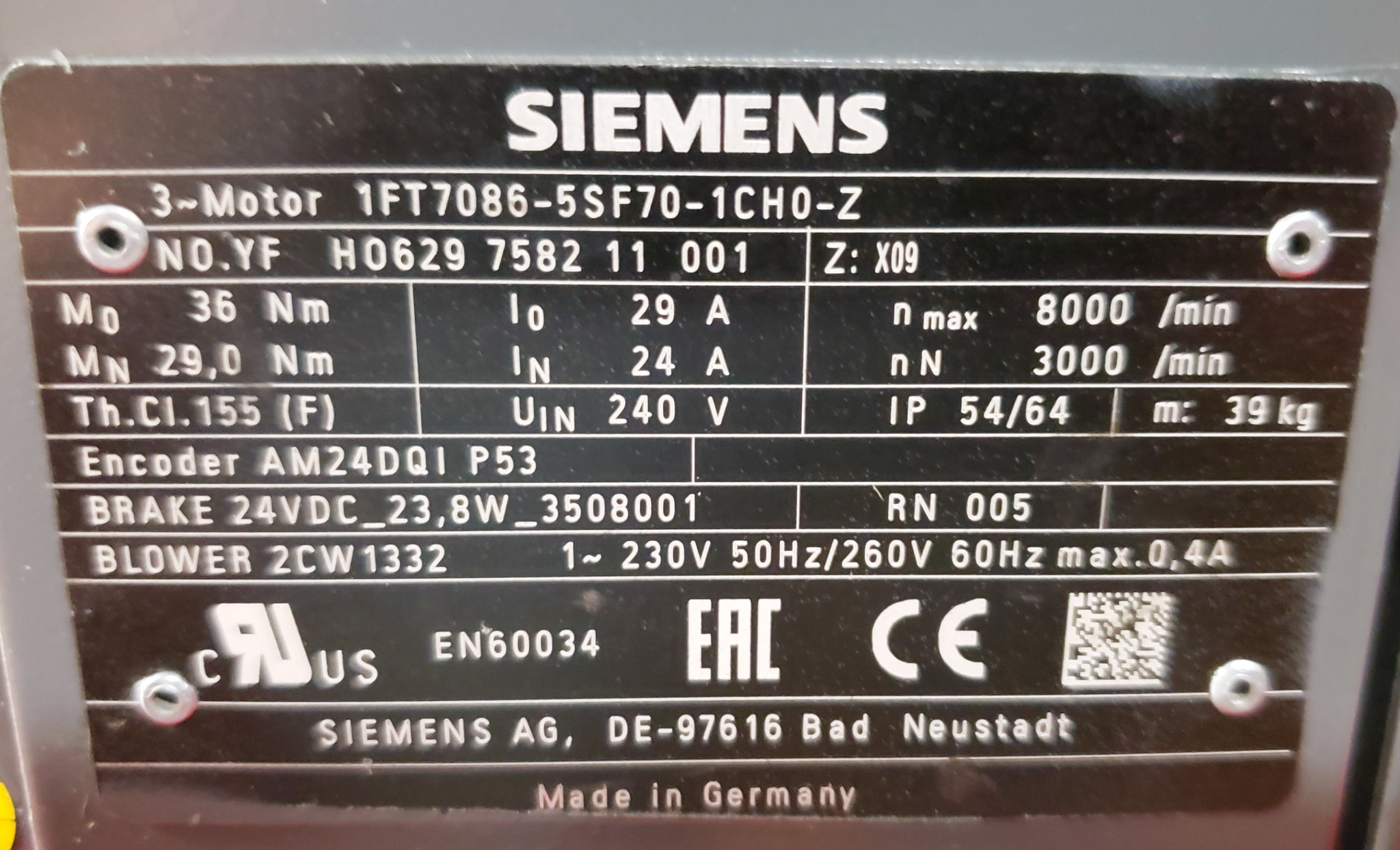

Siemens Model#:1FT7086-5AF70-1CH0-Z
Configuration:
SIMOTICS S Synchronous motor 1FT7, M0=36Nm (100K) NN=3000rpm, PN=9.10kW Forced ventilation Frame size IMB 5 (IM V1, IM V3) recessed flange (more compact) POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) PLAIN SHAFT, WITH HOLDING BRAKE; ACCURACY TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 64, Z= X09 (Paint Finish). No blower.
(Remanufactured)
One year warranty from invoice date.
Sold out
