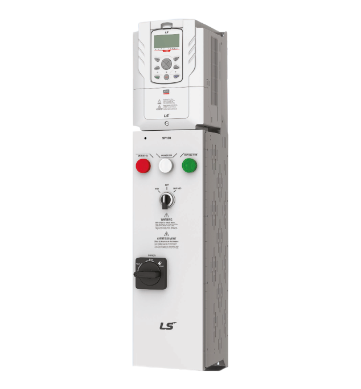

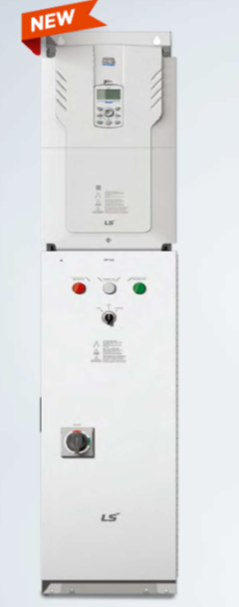

LS Electric LSLV0075SP100-2CEND3

SKU: LSLV0075SP100-2CEND3 - 6736002000
$3,580.00
$2,347.00
$2,347.00
Unavailable
per item

New, 240VAC, 3 Phase, 7.5 - 10 HP


CONFIGURATION

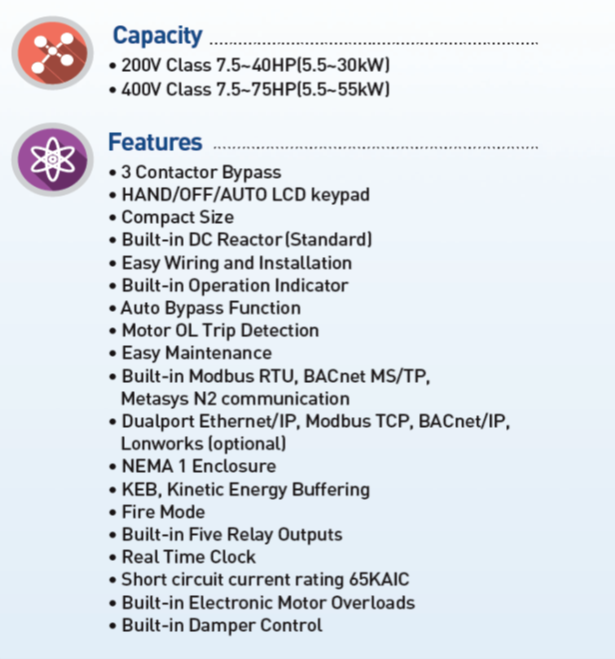

Integral DC Reactor - LCD Keypad - Type 1 Enclosure - Built in BACnet MS/TP - 3 Contactor Bypass - HAND/OFF/Auto selectable


​​Constant Torque: O.L.= HD 150%-60s Kw @ 208-240vac - 7.5hp / 5.5 kw - 24a

Variable Torque: O.L.= LD 120%-60s Kw @ 208-240vac - 10hp / 7.5 kw - 30a


Dimensions: 6.65"W x 36.61"H x 8.93"D

​

2 Year Warranty

Instruction Manual - DRIVE View Software - Data Sheet
