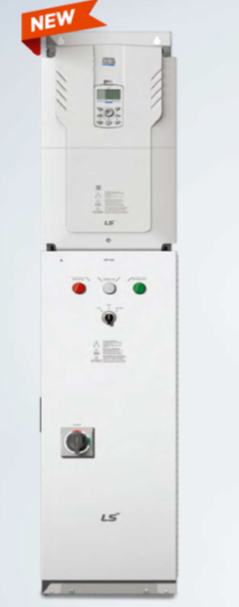

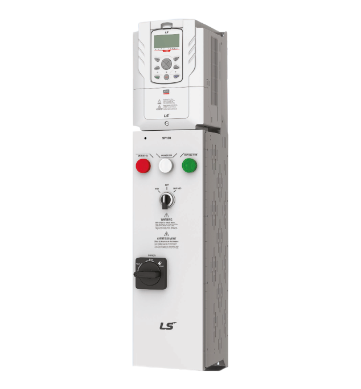

LS Electric LSLV0185SP100-2CEND3

SKU: LSLV0185SP100-2CEND3 - 6736002300
$6,335.00
$4,180.00
$4,180.00
Unavailable
per item

New, 240VAC, 3 Phase, 20 - 25 HP


CONFIGURATION

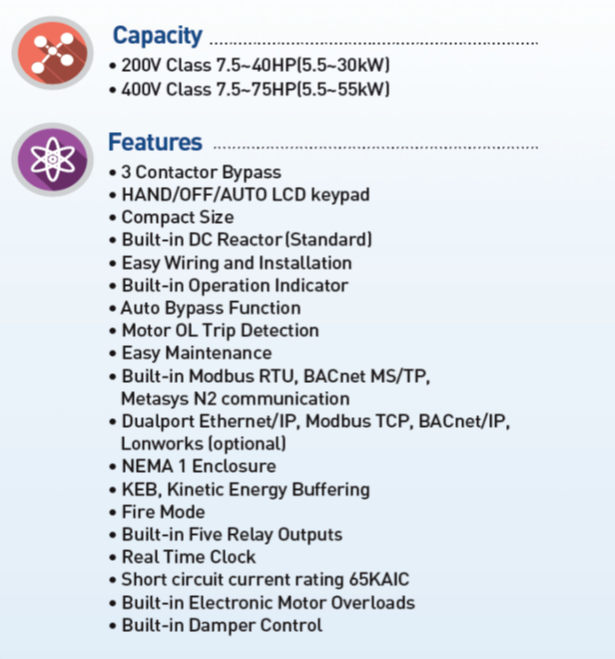

Integral DC Reactor - LCD Keypad - Type 1 Enclosure - Built in BACnet MS/TP - 3 Contactor Bypass - HAND/OFF/Auto selectable


​​Constant Torque: O.L.= HD 150%-60s Kw @ 208-240vac - 20hp / 15 kw - 60a

Variable Torque: O.L.= LD 120%-60s Kw @ 208-240vac - 25hp / 18.5 kw - 69a


Dimensions: 9.83"W x 51.65"H x 11.33"D

​

2 Year Warranty

Instruction Manual - DRIVE View Software - Data Sheet
