LS Electric LSLV0150SP100-4CEFD3

SKU: LSLV0150SP100-4CEFD3 - 6737003300
$4,222.00
$2,786.00
$2,786.00
Unavailable
per item

New, 480VAC, 3 Phase, 15 - 20 HP

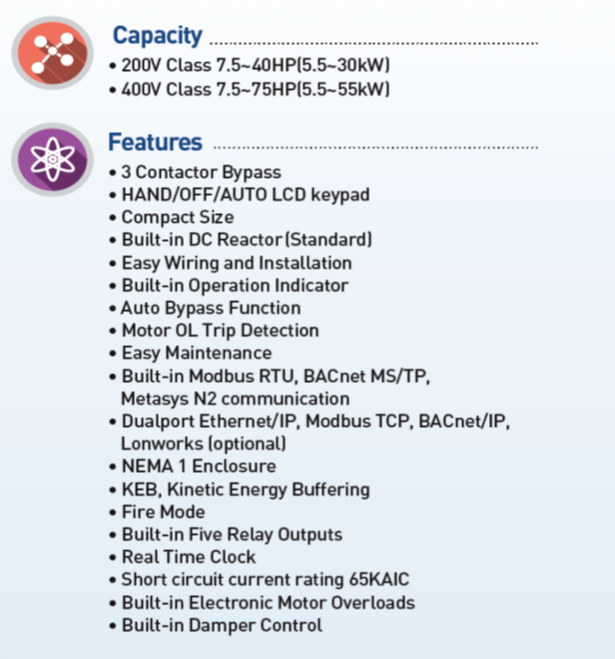

CONFIGURATION

Integral EMC Filter - DC Reactor - LCD Keypad - Type 1 Enclosure - Built in BACnet MS/TP - 3 Contactor Bypass - HAND/OFF/Auto selectable


​​​Constant Torque: O.L.= HD 150%-60s Kw @ 380-480vac - 15hp / 11 kw - 22a

​​Variable Torque: O.L.= LD 120%-60s Kw @ 380-480vac - 20hp / 15 kw - 30a


Dimensions: 8.26"W x 46.41"H x 10.27"D

​

2 Year Warranty

Instruction Manual - DRIVE View Software - Data Sheet
