LS Electric LSLV0185SP100-4CEFD3

SKU: LSLV0185SP100-4CEFD3 - 6737003400
$4,835.00
$3,190.00
$3,190.00
Unavailable
per item

New, 480VAC, 3 Phase, 20 - 25 HP


CONFIGURATION

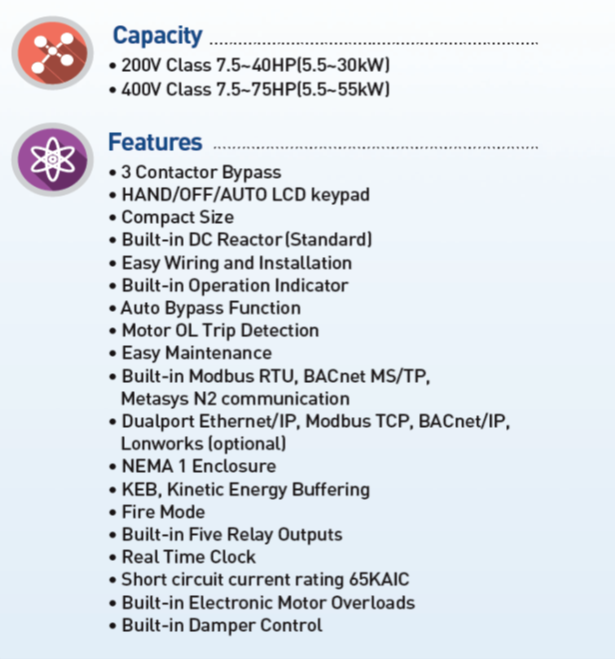

Integral EMC Filter - DC Reactor - LCD Keypad - Type 1 Enclosure - Built in BACnet MS/TP - 3 Contactor Bypass - HAND/OFF/Auto selectable


​​​Constant Torque: O.L.= HD 150%-60s Kw @ 380-480vac - 20hp / 15 kw - 28a

​​Variable Torque: O.L.= LD 120%-60s Kw @ 380-480vac - 25hp / 18.5 kw - 38a


Dimensions: 8.26"W x 46.41"H x 10.27"D

​

2 Year Warranty

Instruction Manual - DRIVE View Software - Data Sheet
