Product Details

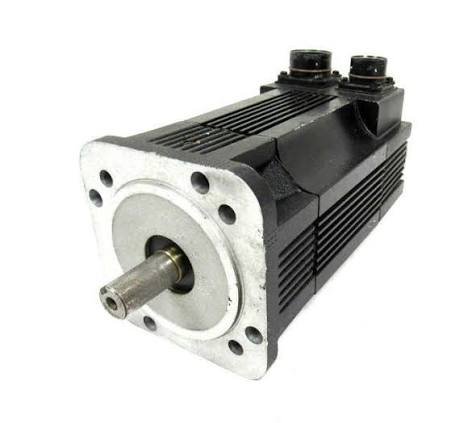

Allen Bradley Servo Motor Model: 1326AB-B520F-21-K5
Technical Specifications
- Series: 1326AB Torque Plus Series
- Voltage Rating: 460/380 VAC
- Power Output: 2.9 kW
- Rated Speed: 3500 RPM (at 460V) / 3000 RPM (at 380V)
- Continuous Torque: 13.1 Nm
- Peak Stall Torque: 39.3 Nm
- Current: 7.5 - 8.8 Amps
- Frame Diameter: 149 mm
- Flange/Shaft: IEC metric flange with keyway
- Feedback Type: Resolver-based feedback
- Holding Brake: 13.6 Nm, 24 VDC brake coil
Refurbished unit
1 Year warranty
