Product Details

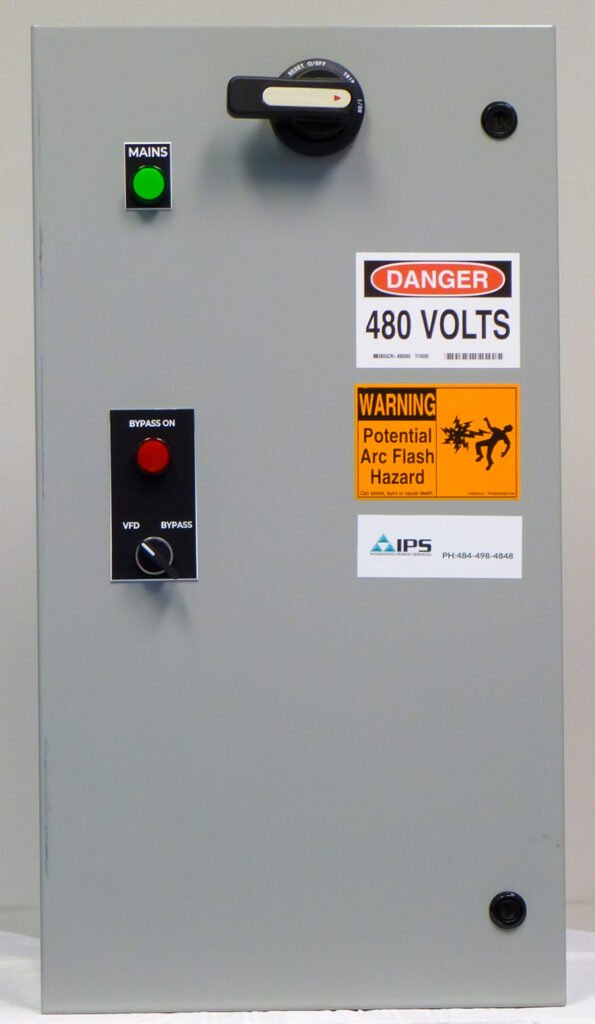

New, 460 VAC, 3 Phase, Bypass Box 1-20 HP
CONFIGURATION
Door-mounted 2-position switch, labelled VFD - BYPASS
3-contactor Bypass with one contactor for the VFD's line side supply, one contactor for the VFD's load side, and one Bypass contactor with motor overload, around the VFD
- Control Power Transformer, 150VA with line and load fusing
- Panel drawings
- Line Reactor
- Circuit Breaker Lockout Handle
- Complies with IEC 60529, IP66
- CSA & NEMA Type 3R, 4, and 12 enclosure
150% - 47.55A @ 460VAC, 175% - 55.475A @ 460 VAC (OL Amps 48-65)
Dimensions: 16"W x 30"H x 9"D
1 Year Warranty
