Product Details
The LS Electric H100+ is optimized for fan, pump, HVAC and water-treatment applications. IPS can help specify the correct H100+ drive, enclosure, communications and bypass arrangement.

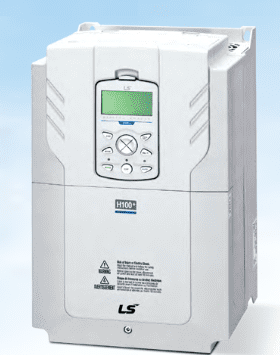

The LS Electric H100+ (Plus) is an advanced variable frequency drive (VFD) built specifically for HVAC, fan, and pump applications. It expands on the standard H100 line with enhanced firmware, built-in multi-pump lead-lag control, and specialized protection features.
Key Features
- Built-in Lead-Lag: Controls up to 8 drives or 1 VFD with 5 auxiliary motors without needing an external PLC.
- Pump & Fan Protections: Includes no-flow control, over-cycling protection, thrust bearing control, and a backspin timer.
- Dual Rating: Works for both normal duty (variable torque) and heavy duty (constant torque) applications.
- Advanced PID: Features improved PI auxiliary control (suction, level, vacuum) and selectable wake-up/sleep modes.]
Ratings & Specifications
- Voltage Classes: 3-phase 240V (1 HP to 25 HP) and 3-phase 480V (1 HP to 80 HP and higher models).
- Enclosure: Standard IP20 (with options for higher protection depending on setup).
- Single-Phase Compatibility: UL tested and approved to run on single-phase input power with proper derating and reactor usage.
