AS3

The AS3 is Toshiba’s latest low voltage drive with enhanced real-time communications and advanced features. Equipped with embedded dual-port Ethernet/IP, the dual-rated AS3 is ready for use out-of-the-box with no optional devices needed. The AS3 meets the requirements of Internet of Things (IoT) and Industry 4.0 automation and features superior motor control technology and electrical circuit design for your application needs.

AS3 Video

AS3 Drive TIC Talk video

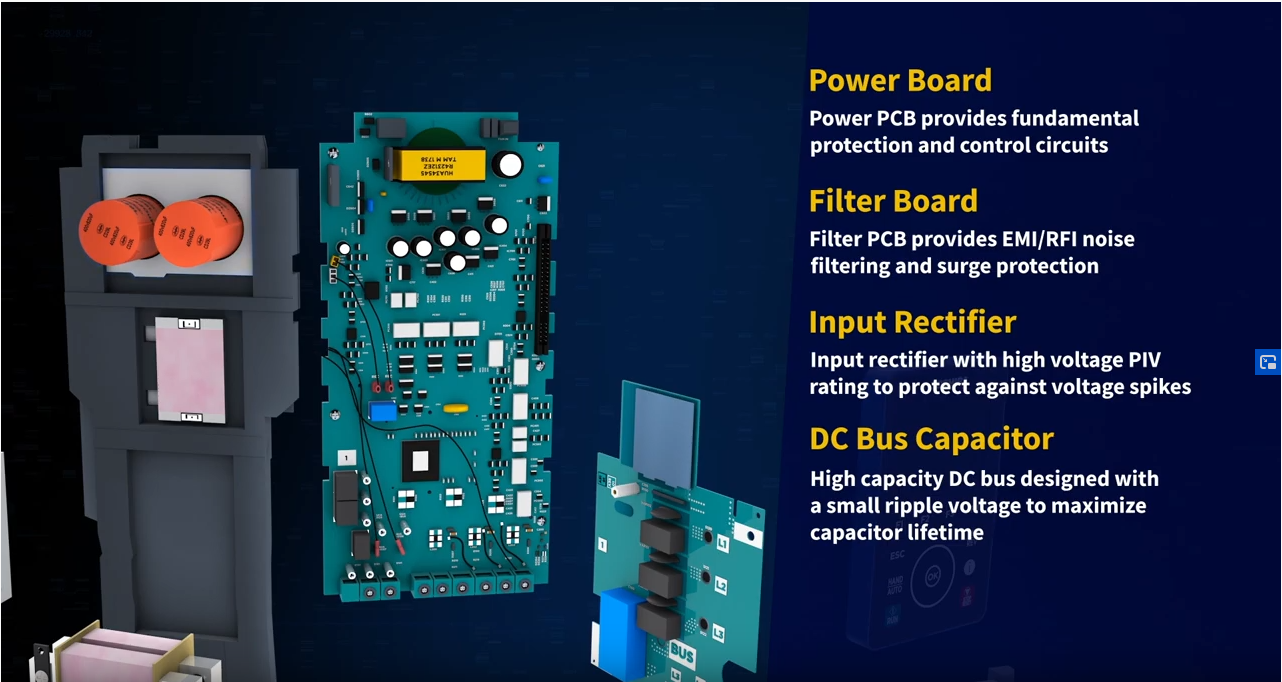

Toshiba AS3 Low Voltage Drive Video

Toshiba VFAS3-2004P

$950.00 $570.00

New, 230VAC, 3 Phase, 0.5-1 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 0.5 hp / .37 kw - 3.3a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 1 hp / .75 kw - 4.6a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2007P

$1,050.00 $630.00

New, 230VAC, 3 Phase, 1-2 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 1 hp / .75 kw - 4.6a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 2 hp / 1.5 kw - 8a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2015P

$1,110.00 $665.00

New, 230VAC, 3 Phase, 2-3 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 2 hp / 1.5 kw - 8a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 3 hp / 2.2 kw - 11.2a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2022P

$1,240.00 $744.00

New, 230VAC, 3 Phase, 3-5 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 3 hp / 2.2 kw - 11.2a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 5 HP / 3.7 kw - 18.7a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2037P

$1,400.00 $840.00

New, 230VAC, 3 Phase, 5-7.5 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 5hp / 2.2 kw - 18.7a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 7.5hp / 3.7 kw - 25.4a

Dimensions: 6.7"W x 16.2"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-2055P

$1,914.00 $1,148.40

New, 230VAC, 3 Phase, 7.5-10 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 7.5hp / 5.5 kw-25.4a

Variable torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 10 hp / 7.5 kw - 32.7a

Dimensions: 8.3"W x 21.8"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2075P

$2,244.00 $1,346.40

New, 230VAC, 3 Phase, 10-15 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 10hp / 7.5 kw - 32.7a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 15hp / 11 kw - 48.8a

Dimensions: 8.3"W x 21.8"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-2110P

$2,860.00 $1,716.00

New, 230VAC, 3 Phase, 15-20 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 15hp / 11 kw-46.87a

Variable torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 20 HP / 15 kw - 63.4a

Dimensions: 8.9"W x 27.3"H x 10.7"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-2150P

$3,190.00 $1,914.00

New, 230VAC, 3 Phase, 20-25 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 20 hp / 15 kw - 63.4a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 25hp / 18.5 kw-78.4a

Dimensions: 8.9"W x 27.3"H x 10.7"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2185P

$4,290.00 $2,574.00

New, 230VAC, 3 Phase, 25-30 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 25hp / 18.5 kw-78.4a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 30 HP / 22 kw - 92.6a

Dimensions: 8.9"W x 27.3"H x 10.7"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-2220P

$4,895.00 $2,937.00

New, 230VAC, 3 Phase, 30-40 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 30 hp / 22 kw-92.6a

Variable torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 40 hp / 30 kw - 123a

Dimensions: 11.5"W x 36.8"H x 12.7"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2300P

$7,810.00 $4,686.00

New, 230 VAC, 3 Phase, 40-50 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 40 hp / 30 kw - 123a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 50 HP / 37 kw - 149a

Dimensions: 11.5"W x 36.8"H x 12.7"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-2370P

$12,100.00 $7,260.00

New, 230VAC, 3 Phase, 50-60 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 50 hp / 37 kw - 149a

Variable torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 60 HP / 45 kw - 176a

Dimensions: 11.5"W x 36.8"H x 12.7"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-2450P

$14,850.00 $8,910.00

New, 230VAC, 3 Phase, 60-75 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 60 hp / 45 kw - 176a

Variable Torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 75 hp / 55 kw - 211a

Dimensions: 12.7"W x 33.5"H x 15.4"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-2550P

$18,260.00 $10,956.00

New, 230VAC, 3 Phase, 75-100 HP

CONFIGURATION

Integrated braking unit - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 200vac HP @ 230vac - Amps 75 hp / 55 kw - 211a

Variable torque: O.L.= LD 110%-60s Kw @ 200vac HP @ 230vac - Amps 100 HP / 75 kw - 282a

Dimensions: 12.7"W x 33.5"H x 15.4"D

1 Year Warranty

Brochure - Instruction Manual - ASD Pro Software

Toshiba VFAS3-4004PC

$830.00 $498.00

New, 460 VAC, 3 Phase, 0.5-1 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps .5 hp / .4 kw - 1.5a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 1 hp / .75 kw - 2.2a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4007PC

$940.00 $564.00

Sold out

New, 460VAC, 3 Phase, 1-2 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke. - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 1 hp / .75 kw - 2.2a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 2 HP / 1.5 kw - 4a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4015PC

$1,020.00 $612.00

New, 460VAC, 3 Phase, 2-3 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 2 hp / 1.5 kw - 4.0a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 3 hp / 2.2 kw - 5.6a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4022PC

$1,400.00 $738.83

New, 460 VAC, 3 Phase, 3-5 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 3 hp / 2.2 kw - 5.6a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 5 hp / 3.7 kw - 9.3a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4037PC

$1,395.00 $818.40

Sold out

New, 460VAC, 3 Phase, 5-7.5 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 5 hp / 3.7 kw - 9.3a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps7.5hp / 5.5 kw - 12.7a

Dimensions: 5.7"W x 13.8"H x 8.0"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4055PC

$1,610.00 $966.00

New, 460VAC, 3 Phase, 7.5-10 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 7.5hp / 5.5 kw-12.7a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 10 hp / 7.5 kw - 16.5a

Dimensions: 6.7"W x 16.2"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4075PC

$2,000.00 $1,200.00

New, 460 VAC, 3 Phase, 10-15 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 10hp / 7.5 kw - 16.5a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 15hp / 11 kw - 23.5a

Dimensions: 6.7"W x 16.2"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4110PC

$2,600.00 $1,745.00

New, 460 VAC, 3 Phase, 15-20 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 15hp / 11 kw - 23.5a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 20hp / 15 kw - 31.7a

Dimensions: 8.3"W x 21.8"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software

Toshiba VFAS3-4150PC

$3,950.00 $2,185.00

New, 460VAC, 3 Phase, 20-25 HP

CONFIGURATION

Integrated braking unit - Integrated EMC filter - Integrated DC choke - IP20

Constant Torque: O.L.= HD 150%-60s Kw @ 400vac HP @ 460vac - Amps 20hp / 15 kw - 31.7a

Variable Torque: O.L.= LD 110%-60s Kw @ 400vac HP @ 460vac - Amps 25hp / 18.7 kw - 39.2a

Dimensions: 8.3"W x 21.8"H x 9.2"D

1 Year Warranty

Brochure - Instruction Manual - ASD PRO Software
