IPS IPS3-20 BYB

SKU: IPS IPS3-20BYB
$8,560.00
$4,650.00
$4,650.00
Unavailable
per item

New, 460 VAC, 3 Phase, Bypass Box 1-20 HP

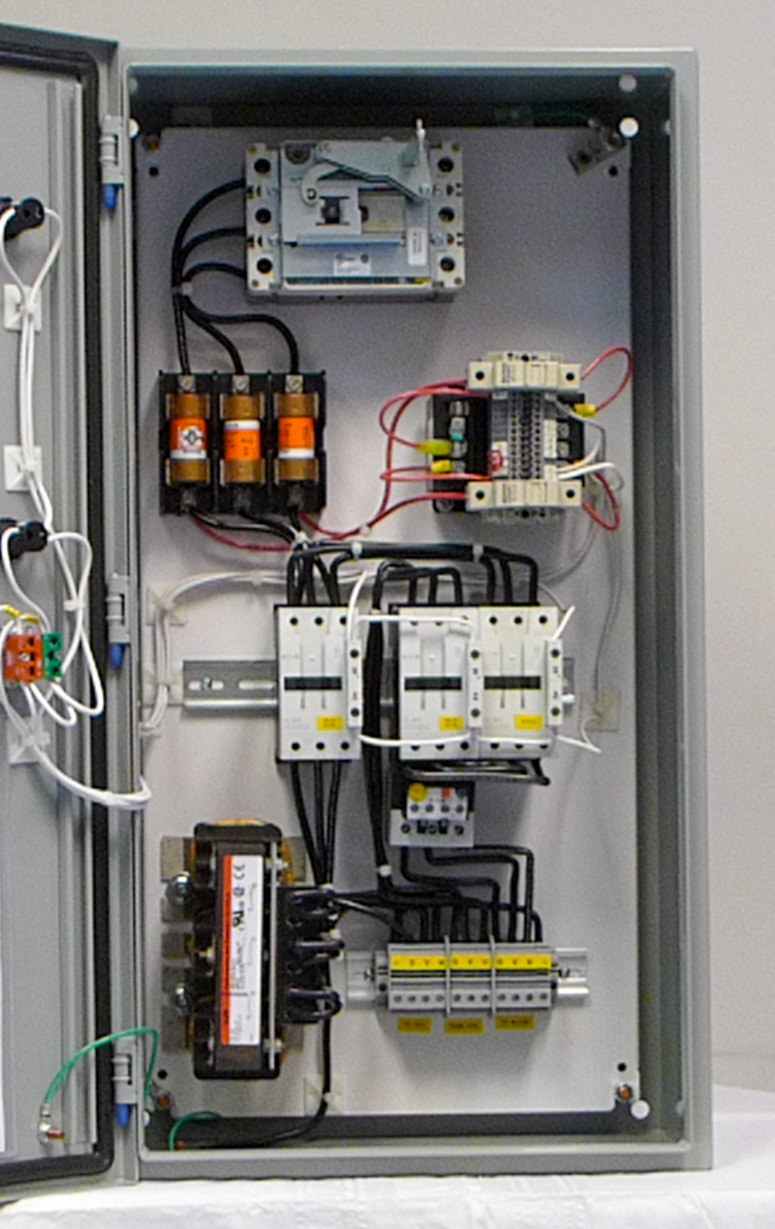

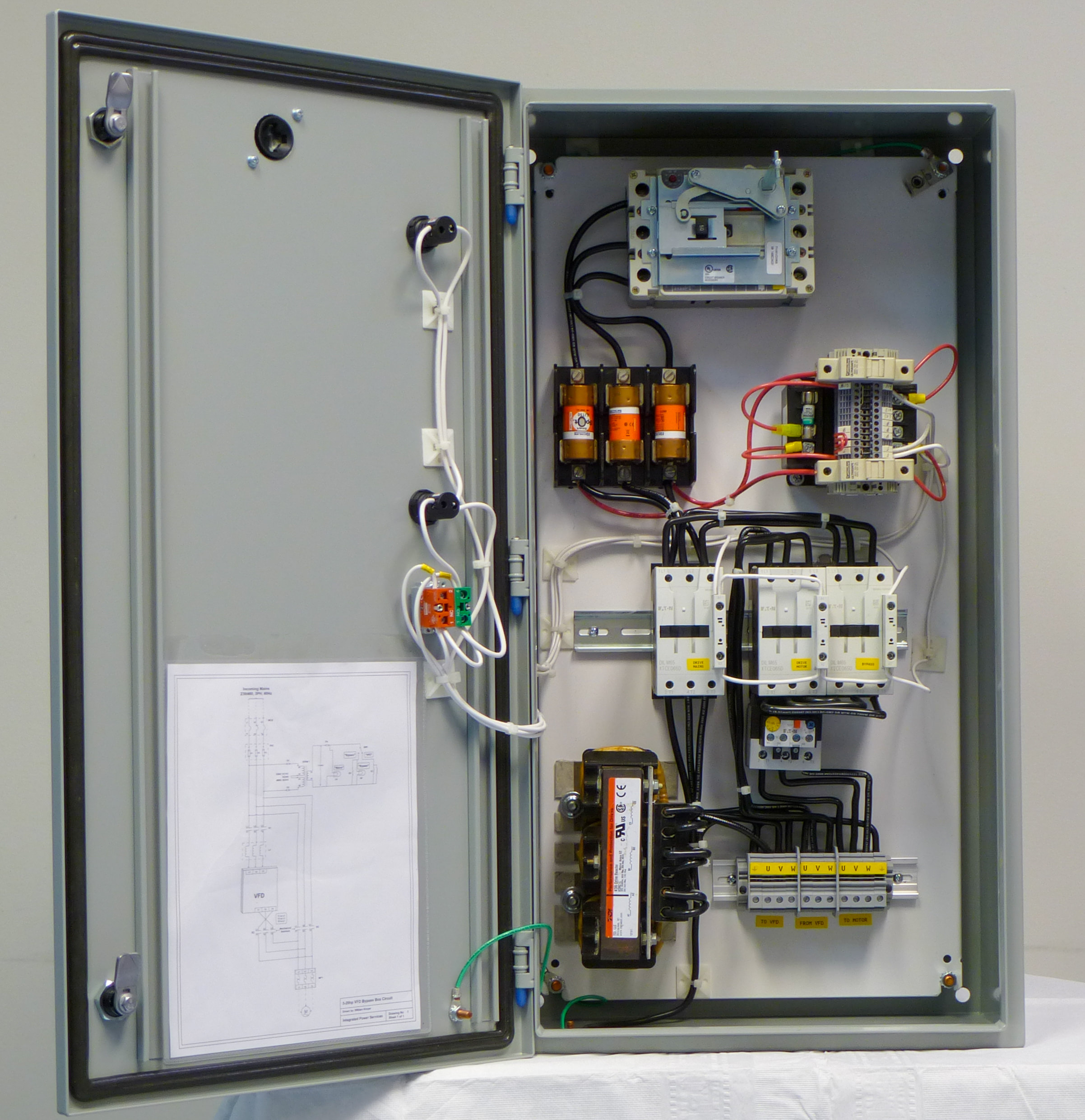

CONFIGURATION


Door-mounted 2-position switch, labelled VFD - BYPASS

3-contactor Bypass with one contactor for the VFD's line side supply, one contactor for the VFD's load side, and one Bypass contactor with motor overload, around the VFD

  • Control Power Transformer, 150VA with line and load fusing
  • Panel drawings
  • Line Reactor
  • Circuit Breaker Lockout Handle
  • Complies with IEC 60529, IP66
  • CSA & NEMA Type 3R, 4, and 12 enclosure


150% - 47.55A @ 460VAC​, 175% - 55.475A @ 460 VAC (OL Amps 48-65)


Dimensions: 16"W x 30"H x 9"D

​

1 Year Warranty

1 available
